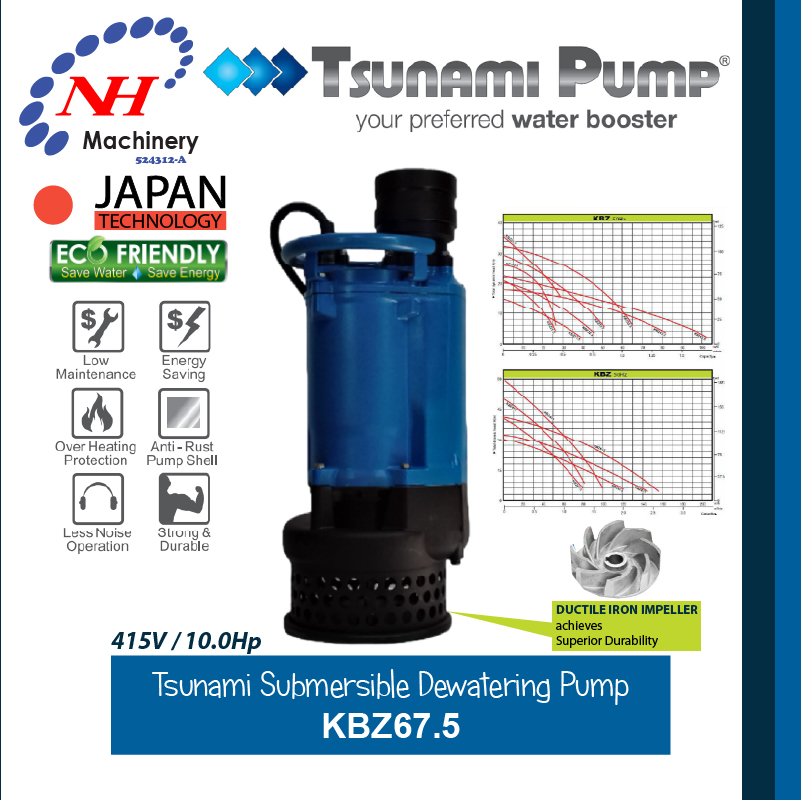

TSUNAMI SUBMERSIBLE DEWATERING PUMP KBZ67.5
RM5,780.00
SPECIFICATION
Model : KBZ67.5
Power: 7.5 kW / 10 HP
Voltage: 415v
Frequency: 50Hz
Max. Flow: 124.8 m³/h
Max. Head: 31m
Max. Liquid Temperature: 40°C
Cable Length: 8m
Impeller Passage: 19.5mm
Motor Phase: Single-Phase
Protection Class: IP68
Weight: 114kg
Carton Dimension(W x L x H) : 390 x 850 x 460 mm
Scope Of Delivery
• 1x Tsunami Submersible Dewatering Pump KBZ67.5
WARRANTY PERIOD : RESIDENTIAL : 24 MONTHS / COMMERCIAL : 12 MONTHS
Description
The Tsunami KBZ67.5 is a heavy-duty submersible dewatering pump designed for demanding applications such as construction sites, mining operations, and sewage treatment facilities. Its robust cast iron construction ensures long-lasting durability, while the top-discharge design allows for installation in confined spaces and effective motor cooling.
• Durable Construction: Made from rigid cast iron, providing high durability and resistance to wear.
• High-Pressure Resistance: Equipped with a mechanical seal resistant to high pressure (0.5 MPa), allowing for increased submersion depths.
• Efficient Cooling: The top-discharge mechanism ensures the motor remains cool, even when the pump operates with its motor exposed to air.
• Semi-Open Impeller: Features a semi-open impeller made of high chrome alloy, matched with a ductile iron wear plate, achieving superior durability.
• Thermal Protection: The hermetically sealed motor comes with built-in thermal protection, enhancing safety and reliability.
Application:
• Civil Engineering
• Mining and Quarries
• Sewage Treatment
• General Pumping
Additional information
| Weight | 120 kg |
|---|---|
| Dimensions | 85 × 39 × 46 cm |
