TSUNAMI MAIN PIPE PRESSURE ASIST PUMP BJA SERIES
RM690.00
SPECIFICATION

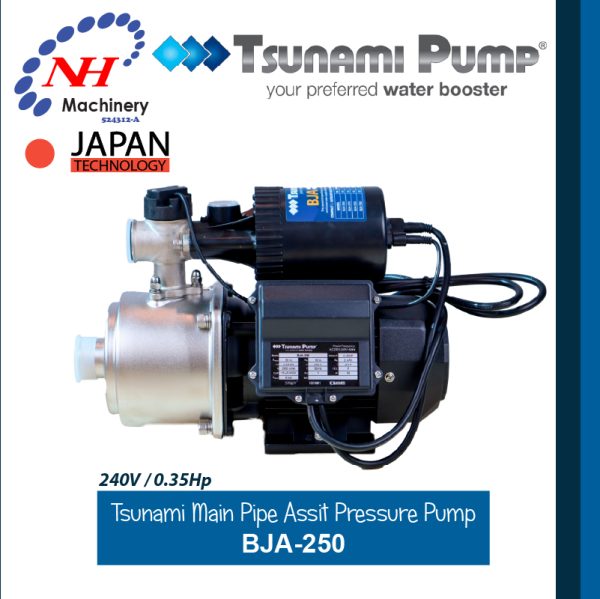

Model: BJA-250
Power : 250w / 0.35hp
Max. Head : 20m
Max. Flow : 2m³/h
Max. Speed: 2900rpm
Max. Liquid Temperature: 50°C
Frequency: 50Hz
Motor Phase: Single-Phase
Protection Class: IP55
Inlet / Outlet: 1″ X 1″

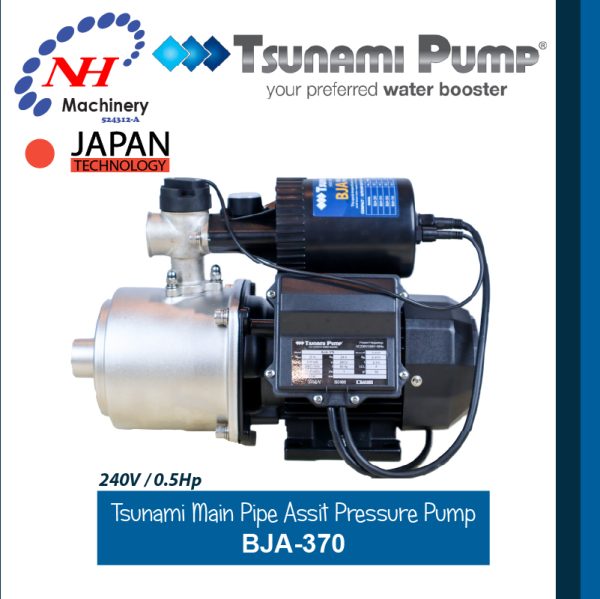

Model: BJA-370
Power : 370w / 0.5hp
Max. Head : 28m
Max. Flow : 2m³/h
Max. Speed: 2900rpm
Max. Liquid Temperature: 50°C
Frequency: 50Hz
Motor Phase: Single-Phase
Protection Class: IP55
Inlet / Outlet: 1″ X 1″

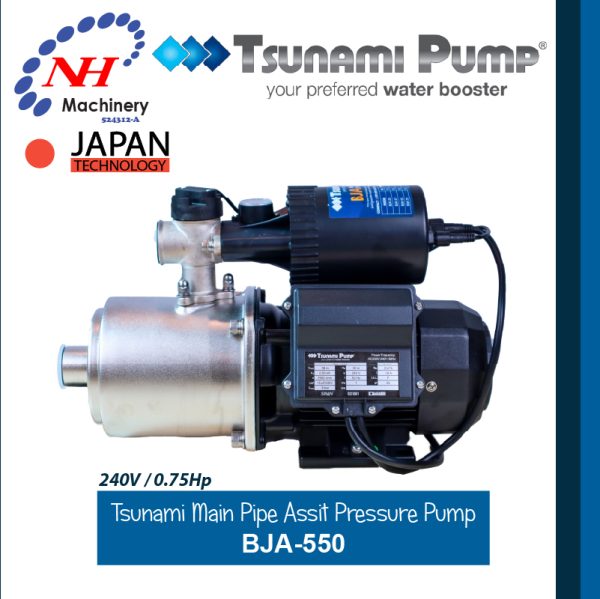

Model: BJA-550
Power : 550w / 0.75hp
Max. Head : 38m
Max. Flow : 2m³/h
Max. Speed: 2900rpm
Max. Liquid Temperature: 50°C
Frequency: 50Hz
Motor Phase: Single-Phase
Protection Class: IP55
Inlet / Outlet: 1″ X 1″

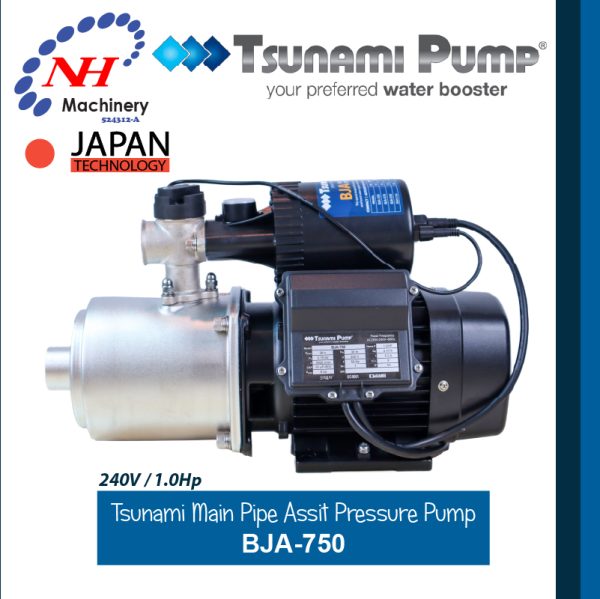

Model: BJA-750
Power : 750w / 1.0hp
Max. Head : 39m
Max. Flow : 4m³/h
Max. Speed: 2900rpm
Max. Liquid Temperature: 50°C
Frequency: 50Hz
Motor Phase: Single-Phase
Protection Class: IP55
Inlet / Outlet: 1″ X 1″
Weight: 12kg
Dimension (WxLxH) : 430 x 210 x 270 mm
Scope Of Delivery
• 1x Tsunami Main Pipe Pressure Asist Pump BJA Series
WARRANTY PERIOD : RESIDENTIAL : 24 MONTHS / COMMERCIAL : 12 MONTHS
Description
The Tsunami BJA Series is a line of automatic main pipe pressure assist pumps designed to enhance water pressure in residential areas experiencing low water supply from the main pipeline. These pumps are particularly suitable for daily household activities, gardening, car washing, and supplying water to solar water heaters and storage tanks. Constructed with stainless steel components, the BJA Series ensures durability and resistance to corrosion, making it ideal for long-term use in various domestic applications.
• Automatic Operation: Equipped with features like delay start, auto-stop when the outlet is closed, and automatic pressure checks every 30 minutes under “Anti Dry-Run Mode”.
• Dry-Running Protection: Prevents motor damage by shutting down the pump when water supply is insufficient.
• Restart System: Automatically restarts after dry-run conditions are resolved.
• Maintenance-Free: Designed for long-term, hassle-free operation.
• Reduced Water Hammering: Minimizes pressure surges in the piping system.
• Stainless Steel Construction: Pump body, inlet, outlet, shaft, and impeller are made of stainless steel for corrosion resistance and durability.
• Compact Design: Facilitates easy installation in confined spaces.
• Noiseless Operation: Designed for low noise levels, suitable for residential environments.
• Water-Resistant: Suitable for installation at the water meter or water tank.
Application:
• Residential Water Pressure Boosting: Enhances water pressure for showers, taps, and appliances in homes.
• Gardening and Car Washing: Provides steady water flow for outdoor activities.
• Water Supply Systems: Ideal for supplying water in multi-storey buildings.
• Solar Water Heater Systems: Assists in pumping water up to solar water heaters.
• Water Storage Tanks: Efficiently fills water storage tanks from the main pipeline.
Additional information
| Weight | 15 kg |
|---|---|
| Dimensions | 43 × 21 × 27 cm |
