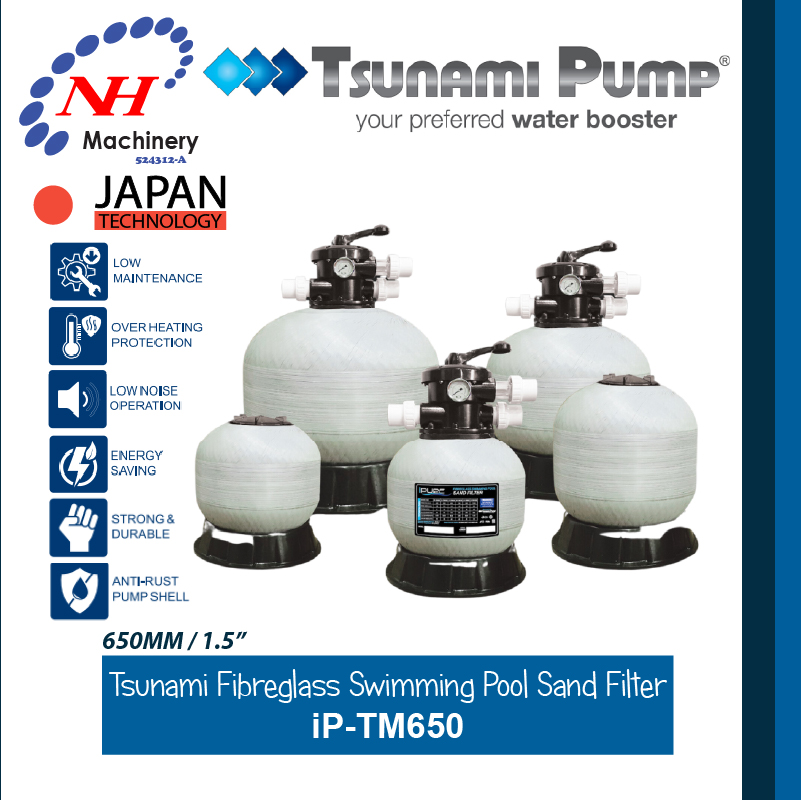

TSUNAMI FIBREGLASS SWIMMING POOL SAND FILTER iP-TM SERIES
RM1,050.00
SPECIFICATION
Model : iP-TM 400
Tank Diameter: 400mm
Pipe Size :1.5″
Max. Flow: 8000L/H
Silica Sand (kg): 35kg
Filter Area (m²): 0.13m²
Valve Size (mm): 40mm
Maximum Working Pressure: 350KpA
Maximum Temperature: 43°C
Model : iP-TM 525
Tank Diameter: 525mm
Pipe Size: 1.5″
Max. Flow: 12000L/H
Silica Sand (kg): 65kg
Filter Area (m²): 0.19m²
Valve Size (mm): 40mm
Maximum Working Pressure: 350KpA
Maximum Temperature: 43°C
Model : iP-TM 650
Tank Diameter (mm): 650mm
Pipe Size (Inch): 1.5″
Max. Flow: 17000L/H
Silica Sand (Kg): 145kg
Filter Area (m²): 0.32m²
Valve Size (mm): 40mm
Maximum Working Pressure: 350KpA
Maximum Temperature: 43°C
Model : iP-TM 650
Tank Diameter (mm): 650mm
Pipe Size (Inch): 1.5″
Max. Flow: 17000L/H
Silica Sand (Kg): 145kg
Filter Area (m²): 0.32m²
Valve Size (mm): 40mm
Maximum Working Pressure: 350KpA
Maximum Temperature: 43°C
Model : iP-TM 750
Tank Diameter (mm): 750mm
Pipe Size (Inch): 1.5″
Max. Flow: 21000L/H
Silica Sand (Kg): 225kg
Filter Area (m²): 0.40m²
Valve Size (mm): 40mm
Maximum Working Pressure: 350KpA
Maximum Temperature: 43°C
Model : iP-TM 900
Tank Diameter (mm): 900mm
Pipe Size (Inch): 2.0″
Max. Flow: 30000L/H
Silica Sand (Kg): 390kg
Filter Area (m²): 0.64m²
Valve Size (mm): 40mm
Maximum Working Pressure: 350KpA
Maximum Temperature: 43°C
Filter materials: Fiber Material
O-rings: NBR/EPDM
Scope Of Delivery
• 1x Tsunami Fibreglass Swimming Pool Sand Filter iP-TM Series
WARRANTY PERIOD : RESIDENTIAL : 24 MONTHS / COMMERCIAL : 12 MONTHS
Description
The Tsunami iP-TM Series is a high-performance fibreglass sand filter designed specifically for swimming pools and water treatment systems. Constructed using corrosion-resistant, heavy-duty fibreglass reinforced with polyester, the iP-TM series ensures long-lasting durability and superior filtration efficiency. Its user-friendly design and robust structure make it ideal for both residential and commercial pool applications.
• High-quality fibreglass body for superior strength and corrosion resistance
• Smooth inner tank surface to improve water flow and reduce clogging
• UV-resistant coating for outdoor installation
• Multiport valve for easy control of filter functions
• Uniform distribution system ensures maximum filtration performance
• Low maintenance and easy to clean
• Suitable for fresh and saltwater applications
Application:
• Ideal for domestic and commercial swimming pool filtration
• Suitable for water treatment systems in resorts, hotels, and water parks
• Can be used in fish ponds and aquaculture systems
• Effective for spa and hydrotherapy pool filtration
Additional information
| Weight | 400 kg |
|---|---|
| Dimensions | 89 × 41 × 44 cm |
