TSUNAMI AUTOMATIC HOME BOOSTER PUMP CMH SERIES
RM850.00
SPECIFICATION

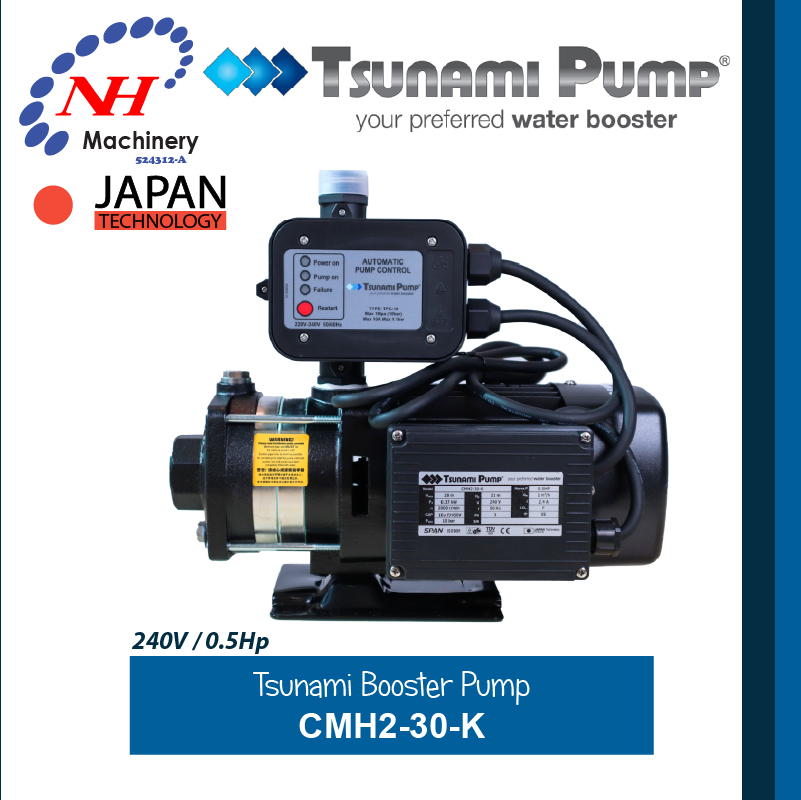

Model: CMH2-30-K
Power: 370w / 0.5Hp
Max. Head: 28m
Max. Flow: 3.5m³/h
Max. Speed: 2950rpm
Max. Liquid Temperature: 50°C
Frequency: 50Hz
Motor Phase: Single-Phase
Protection Class: IP55
Inlet / Outlet: 1” X 1”

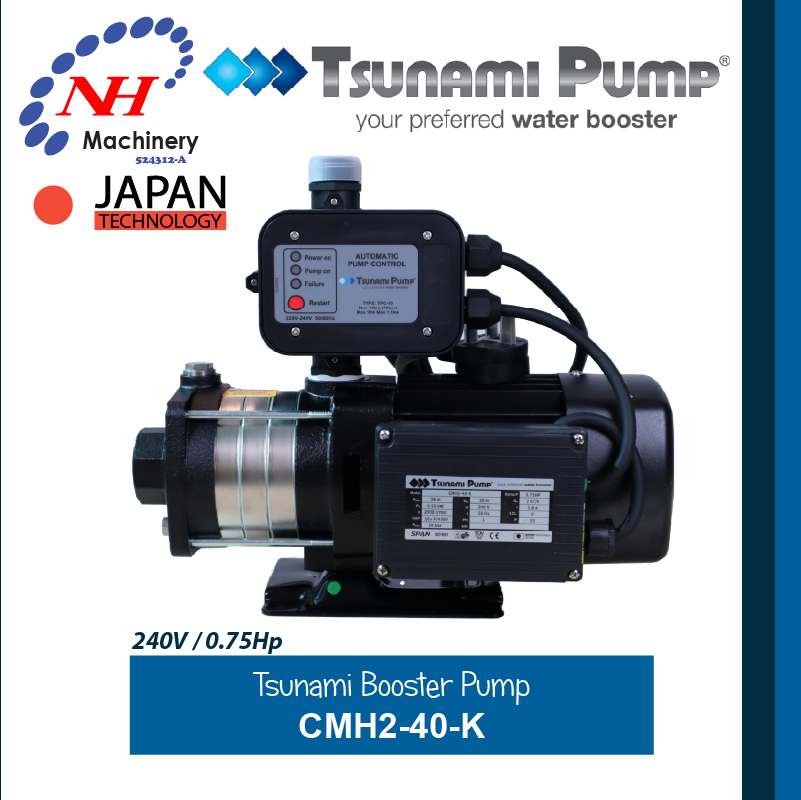

Model: CMH2-40-K
Power: 550w / 0.75hp
ax. Head: 38m
Max. Flow: 3.5m³/h
Max. Speed: 2950rpm
Max. Liquid Temperature: 50°C
Frequency: 50Hz
Motor Phase: Single-Phase
Protection Class: IP55
Inlet / Outlet: 1” X 1”

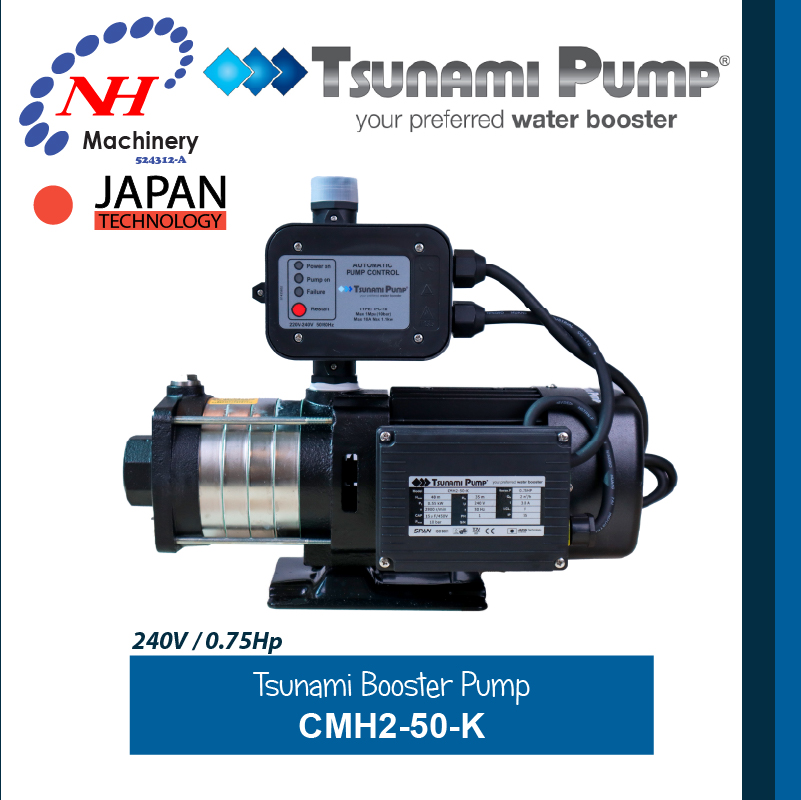

Model: CMH2-50-K
Power: 550w / 0.75hp
Max. Head: 48m
Max. Flow: 3.5m³/h
Max. Speed: 2950rpm
Max. Liquid Temperature: 50°C
Frequency: 50Hz
Motor Phase: Single-Phase
Protection Class: IP55
Inlet / Outlet: 1” X 1”

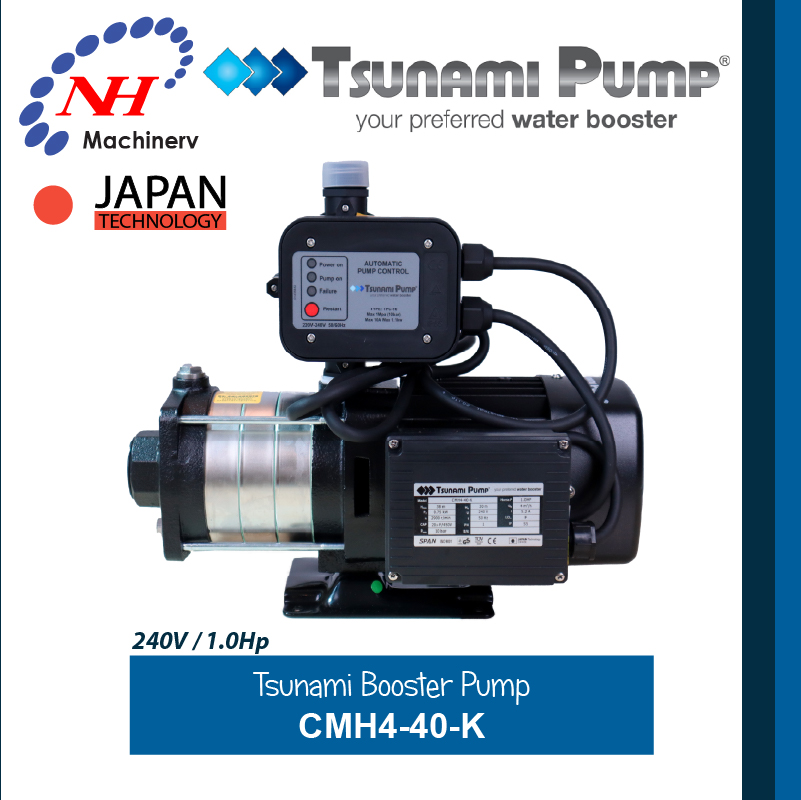

Model: CMH4-40-K
Power: 750w / 1.0Hp
Max. Head: 38m
Max. Flow: 3.5m³/h
Max. Speed: 2950rpm
Max. Liquid Temperature: 50°C
Frequency: 50Hz
Motor Phase: Single-Phase
Protection Class: IP55
Inlet / Outlet: 1¼″ X 1″

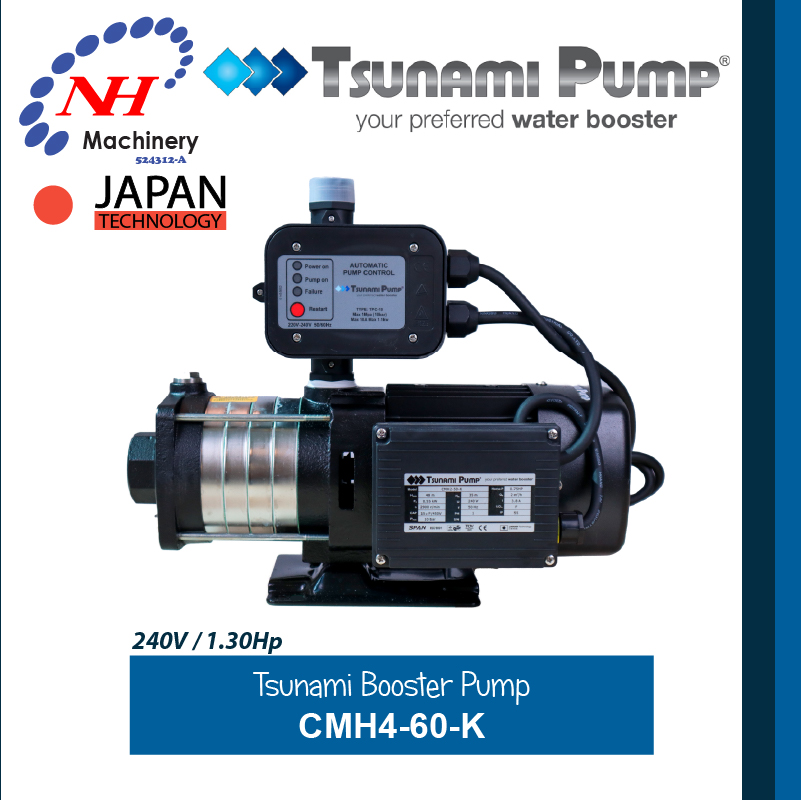

Model: CMH4-60-K
Power: 1100w / 1.30Hp
Max. Head: 58m
Max. Flow: 7.0m³/h
Max. Speed: 2950rpm
Max. Liquid Temperature: 50°C
Frequency: 50Hz
Motor Phase: Single-Phase
Protection Class: IP55
Inlet / Outlet: 1¼″ X 1″
Weight (Unit): 13kg
Dimension(W x L x H): 340 x 380 x 380 mm
Scope Of Delivery
• 1x Tsunami Automatic Booster Pump CMH2-30-K / CMH2-40-K / CMH2-50-K / CMH4-40-K / CMH4-60-K
WARRANTY PERIOD : RESIDENTIAL : 24 MONTHS / COMMERCIAL : 12 MONTHS
Description
The Tsunami CMH Series consists of high-efficiency horizontal multistage centrifugal pumps designed for clean water applications requiring consistent pressure and moderate-to-high flow. Each model in the CMH Series features a multi-impeller system and robust construction, offering a reliable solution for residential, commercial, and light industrial water supply needs. Engineered for durability, energy efficiency, and quiet performance, the CMH Series is ideal for both standalone and integrated systems.
• Horizontal multistage design ensures smooth, pulsation-free flow
• Stainless steel pump body and impellers for corrosion resistance and long life
• Compact and low-noise construction for versatile indoor or outdoor installation
• Energy-efficient motor with thermal overload protection
• Low maintenance requirements due to robust, wear-resistant parts
• Wide range of capacities and head options to suit different system requirements
• Compatible with pressure tanks and automation systems
Application:
• Residential water pressure boosting (e.g., taps, showers, bathrooms)
• Water supply in commercial buildings such as hotels, schools, and offices
• Circulation systems in HVAC and chilled water loops
• Water treatment and filtration systems (RO, UV, etc.)
• Agricultural and garden irrigation systems
• Booster sets for firefighting (when compliant with system standards)
• Industrial applications requiring clean water transfer and pressurization
Additional information
| Weight | 15 kg |
|---|---|
| Dimensions | 34 × 38 × 38 cm |
