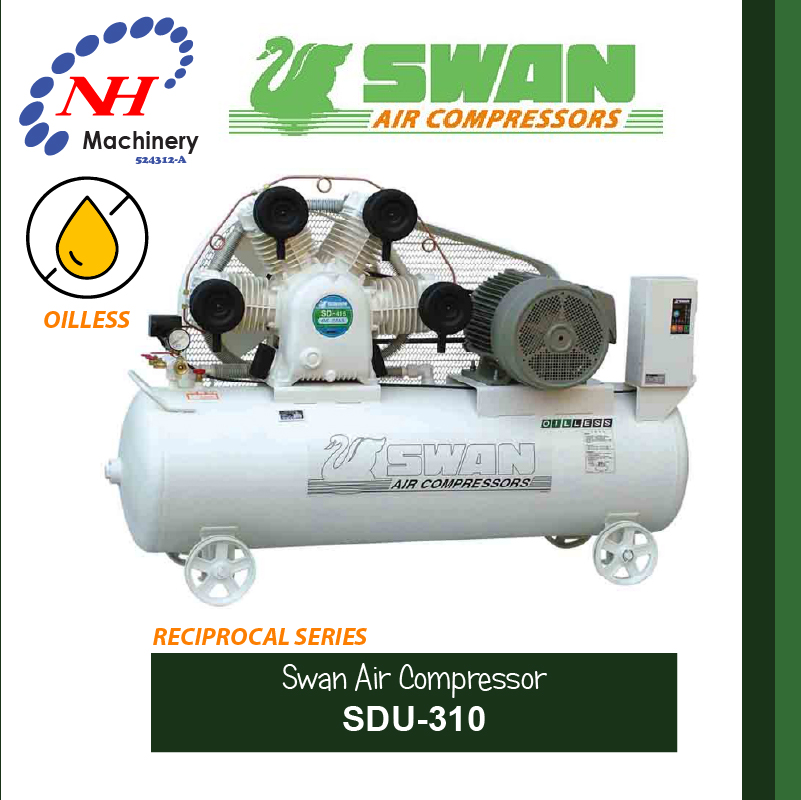

SWAN AIR COMPRESSOR RECIPROCAL SERIES (OILLESS) SDU-310
SPECIFICATION
Model: SDU-310
Motor Power: 10 HP (7.5 kW)
Working Pressure: 8 bar (115 psi)
Compressor Speed: 850 rpm
Free Air Delivery (FAD): 885 L/min
Tank Capacity: 300 liters
Compressor Block Dimensions (W x L x H): 480 x 720 x 680 mm
Compressor Unit Dimensions (W x L x H): 650 x 1750 x 1300 mm
Weight (Compressor Unit): 250 kg
Scope Of Delivery
• 1x Swan Reciprocal Series (OLILESS Type) SDU-310
Description
The Swan SDU-310 is a 10HP oil-free piston air compressor engineered to deliver clean, contaminant-free compressed air. With a 300-liter tank and a Free Air Delivery (FAD) of 885 L/min at 8 bar pressure, it’s ideal for applications where air purity is paramount. Its oil-less design ensures low maintenance and operational efficiency.
• Oil-Free Operation:
– Eliminates the need for lubricants, providing 100% oil-free compressed air.
• Low Maintenance:
– Simplified design reduces maintenance requirements and operational costs.
• Rust-Proof Tank:
– Air receiver made from stainless steel or powder-coated for enhanced durability.
• Automatic Pressure Control:
– Equipped with a Pressure Switch System (“P” Type) that automatically stops and restarts the compressor based on air demand.
• Compact Design:
– Space-saving footprint suitable for various industrial settings.
Applications
• Electronics manufacturing
• Pharmaceutical production
• Food and beverage processing
• Laboratories
• Medical facilities
Additional information
| Weight | 255 kg |
|---|---|
| Dimensions | 65 × 170 × 130 cm |
