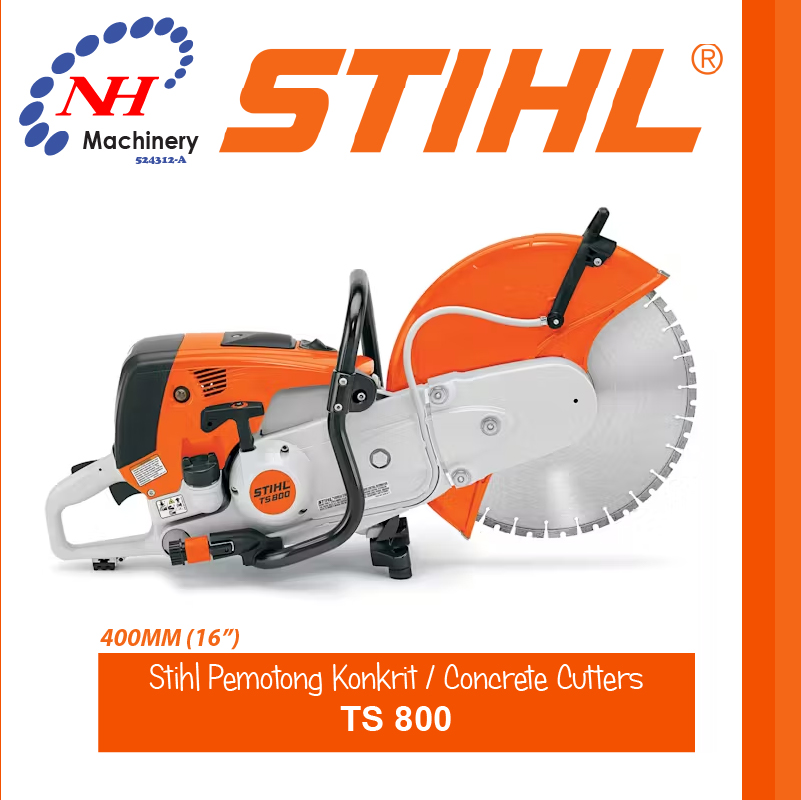

STIHL CUT-OFF MACHINE TS 800
SPECIFICATION
Model: TS 800
Displacement: 98.5 cm³
Power Output: 5.0 kW (~6.8 bhp)
Weight (without cutting wheel): 12.7 kg
Fuel Tank Capacity: 1.2 L
Max Engine Speed: ~9,300 rpm
Max Spindle Speed: 4,600 rpm
Arbor / Bore Size: 20 mm
Cutting Wheel Diameter: 400 mm / 16″
Max Cutting Depth: 145 mm
Sound Pressure Level: 101 dB(A)
Vibration (L / R): 6.5 / 3.9 m/s²
Scope Of Delivery
• 1x Abrasive cutting wheel (400 mm)
• 1x Tool kits
• 1x User manual / instruction booklet
Description
• Very powerful 5.0 kW 2-MIX engine (stratified charge) for professional cutting.
• Long-life air filter system with cyclone air routing – helps separate dust and prolongs filter service life.
• ElastoStart+ (soft start grip) + decompression valve – easier to start.
• Compensator – maintains correct fuel-air mix even when filter gets dirty.
• Anti-vibration system – reduces vibration to your hands and arms.
• Semi-automatic drive-belt tensioning – for longer belt and bearing life.
• Water-connection standard – for wet cutting and dust suppression.
• Comes with a composite (abrasive) wheel as standard.
• Can operate by hand or be mounted on the FW 20 cart for guided cutting.
Additional information
| Weight | 15 kg |
|---|---|
| Dimensions | 130 × 40 × 110 cm |
