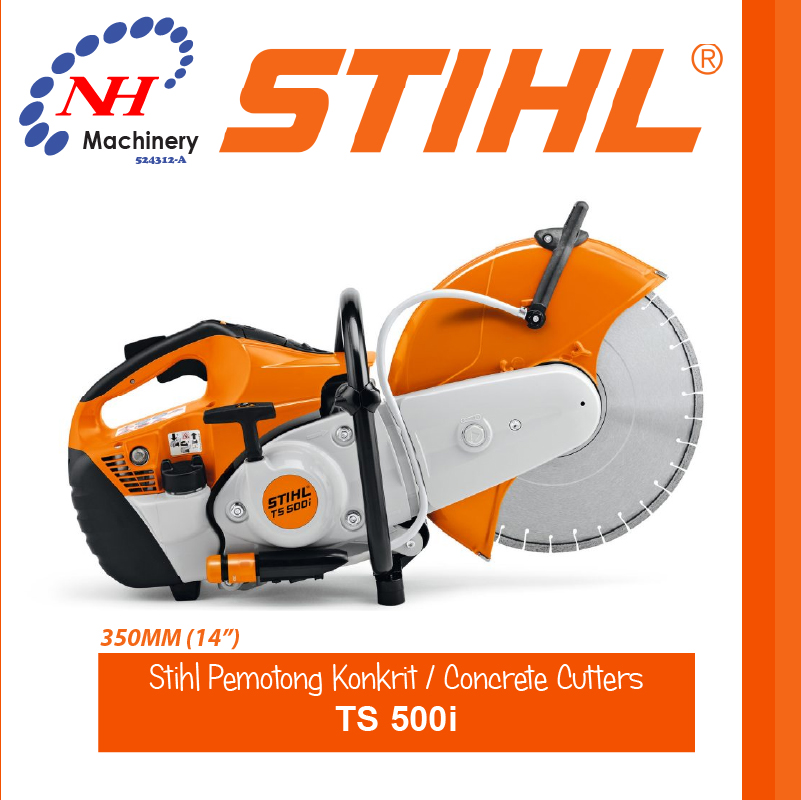

STIHL CUT-OFF MACHINE TS 500i
STIHL CUT-OFF MACHINE TS 500i - Image 2

STIHL CUT-OFF MACHINE TS 500i

SPECIFICATION
Model: TS 500i
Displacement: 72.2 cm³
Power: 3.9 kW (~5.3 bhp)
Fuel Tank Capacity: 725 ml (~24.5 oz)
Engine Speed: 9,000 rpm (governed)
Max Spindle Speed: 5,350 rpm
Cutting Wheel Diameter: 350 mm / 14″
Max Cutting Depth: 125 mm (~4.9″)
Sound Pressure Level: 98 dB(A)
Sound Power Level: 112 dB(A)
Vibration (L / R): 2.4 / 2.0 m/s²
Device Length: 73 cm (with cutting disc)
Weight (without fuel & cutting wheel): 10.2 kg

Scope Of Delivery
• 1x Abrasive cutting wheel (350 mm)
• 1x Tool kits
• 1x User manual / instruction booklet

SKU: TS 500i Categories: , , , Tags: , , , ,

Description

• Electronically Controlled Fuel Injection (“i”) – ensures efficient running and eliminates the need for a choke.
• 2-MIX Engine: stratified charge for good torque, lower emissions.
• Electronic Water Control (EWC): easy to adjust water flow during cutting for dust suppression / cooling.
• Pre-separation Air Filtration System: increases filter life by removing larger particles before the filter.
• Anti-Vibration System: reduces vibration transmitted to handles for more comfort.
• Ergonomic Loop Handle: helps with precise guidance / control.
• Semi-Automatic Drive-Belt Tensioning: makes maintaining belt tension easier.
• Decompression Valve: for easier starting.
• ElastoStart: smooth start, reduces jerk on pull start.
• Can be used by hand or mounted on the FW 20 cart.

Additional information

Weight 15 kg
Dimensions 130 × 40 × 110 cm
