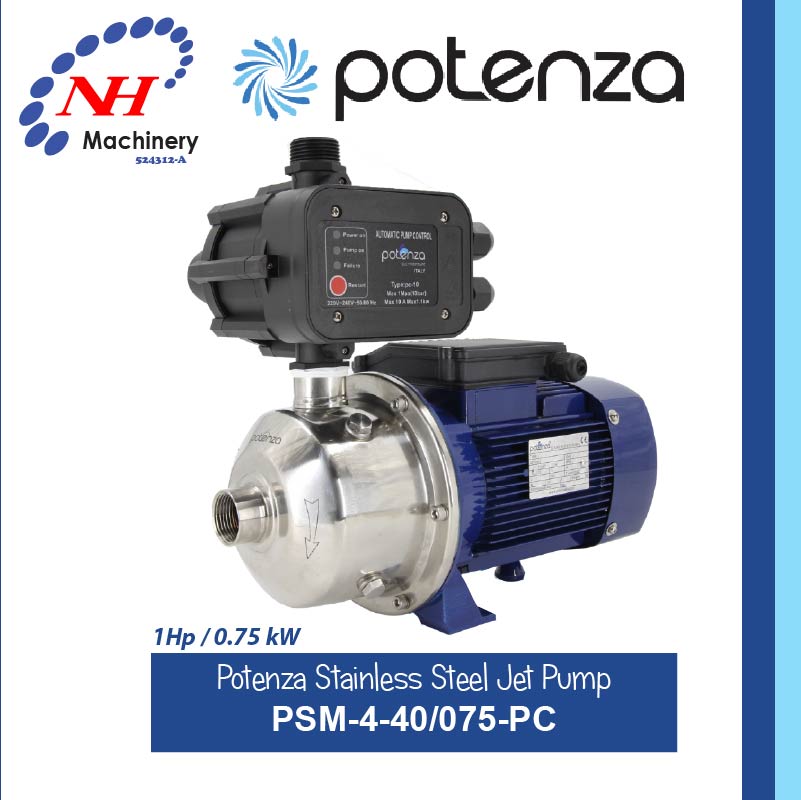

POTENZA STAINLES STEEL JET PUMP PSM-4-40/075-PC
RM1,050.00
SPECIFICATION
Model: PSM-4-40/075-PC
Power Supply: 240 V AC (Single Phase)
Motor Power: 1.0 HP / 0.75 kW
Flow Rate: 16.7 – 116.7 L/min
Head: 23 – 36 meters
Current: 4.2 A
Speed: 2900 rpm
Motor Type: Induction IE2 (High Efficiency)
Protection Class: IP55
Insulation Class: Class F
Inlet Port Size: 1¼ inch (32 mm)
Outlet Port Size: 1 inch (25 mm)
Max Liquid Temperature: 80°C
Capacitor: 20 µF / 500 V
Duty Type: Continuous Duty, Thermally Protected
Dimensions: 250 x 450 x 300 mm
Weight: 12 kg
Performance
• Max Flow Rate: 120 L/min
• Max Head: 36 meters
• Recommended Operating Range: 30–100 L/min for optimal efficiency
• Stable Pressure Output for multiple outlets running simultaneously
• Silent Operation, even at higher loads
Scope Of Delivery
• 1x Potenza Stainless Steel Jet Pump PSM-4-40/075-PC
12 MONTHS WARRANTY
Description
The Potenza PSM-4-40/075-PC is a high-performance stainless steel jet pump with a built-in pressure controller for automatic, hassle-free water boosting. Designed for homes with higher water demands or small commercial operations, it delivers strong pressure, energy-efficient performance, and silent operation. Built tough for daily use, it also features motor protection for added peace of mind.
• Integrated Pressure Controller
– Automatically maintains consistent water pressure—no external controller needed.
• High Performance & Energy Efficient
– 0.75 kW motor delivers powerful flow while reducing energy consumption.
• Low Noise Operation
– Silent performance for home or office environments.
• SUS304 Stainless Steel Build
– Corrosion-resistant body for durability and long life.
• Thermal Overload Protection
– Built-in safety prevents overheating and extends lifespan.
• Easy Setup & Maintenance
– Compact and lightweight design makes it user-friendly and serviceable.
• Reliable for Everyday Use
– Great for homes, small businesses, and filtration setups.
• Residential Homes
• Small Commercial Premises
• Filtration & RO Systems
• HVAC Systems
• Washing & Cleaning
Material Construction
• Pump Body & Casing: SUS304 Stainless Steel
• Impeller & Shaft: SUS304 Stainless Steel
• Mechanical Seal: NBR / Carbon / Ceramic
• Optional Seal Upgrade: Viton (high-temp resistance)
• Back Cover & Guide Plate: SUS304 Stainless Steel
• Motor Housing & Bracket: High-Grade Aluminum
• Bearings: NSK (Japan)
Additional information
| Weight | 13 kg |
|---|---|
| Dimensions | 25 × 45 × 30 cm |
