MAKITA LB1200F – BAND SAW

Description

Makita Band Saw LB1200F can be used to cut curves, even in thick lumber, such as in creating cabriole legs, to rip lumber and to crosscut short pieces. The most common use for the band saw, however, is in cutting irregular shapes. The second most common use is in resawing or ripping lumber into thinner slabs. A band saw also makes the smoothest cuts and, with the appropriate blade, can be used to cut materials other than wood, including metal.

Although a band saw is rarely the first stationary power tool purchased for an user, it is one of the most versatile. A scroll saw cannot only be used for fun craft work, but also for cutting decorative mouldings and other furniture and cabinetry pieces.

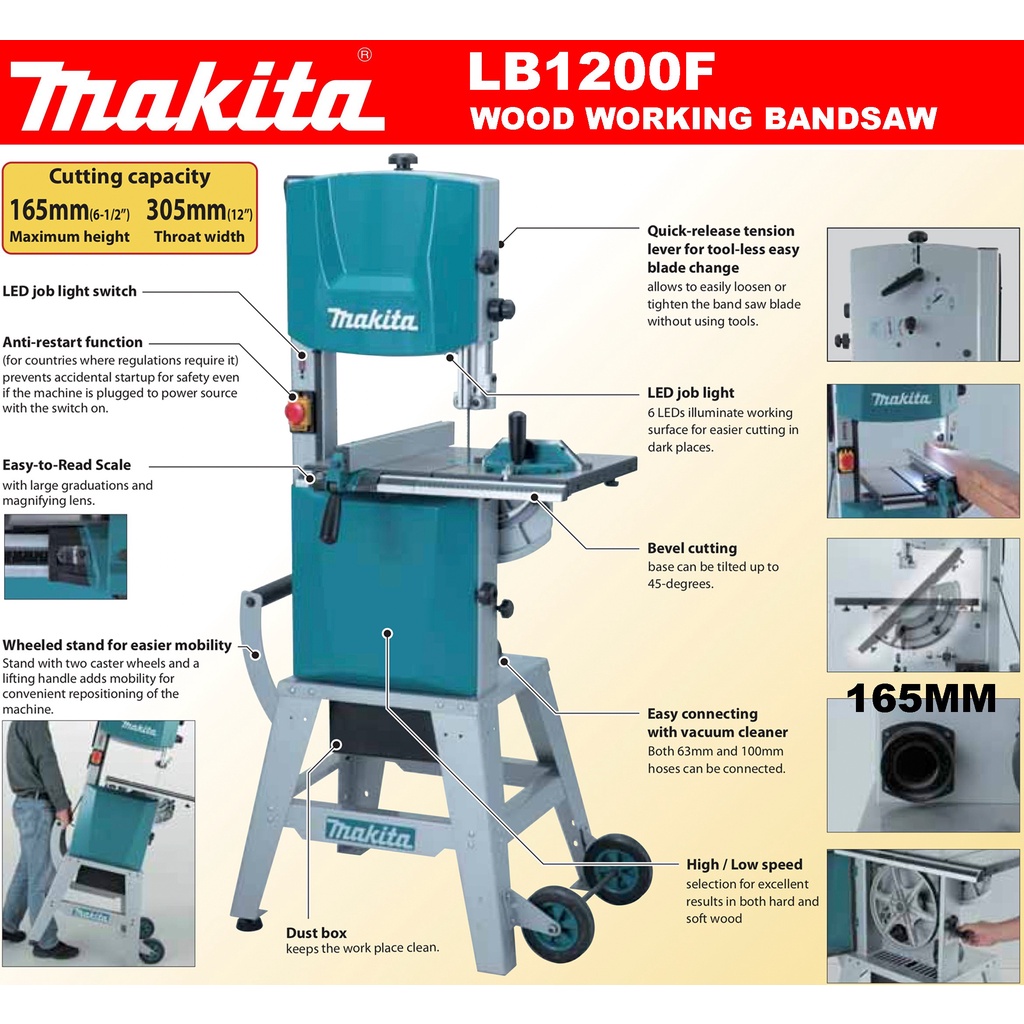

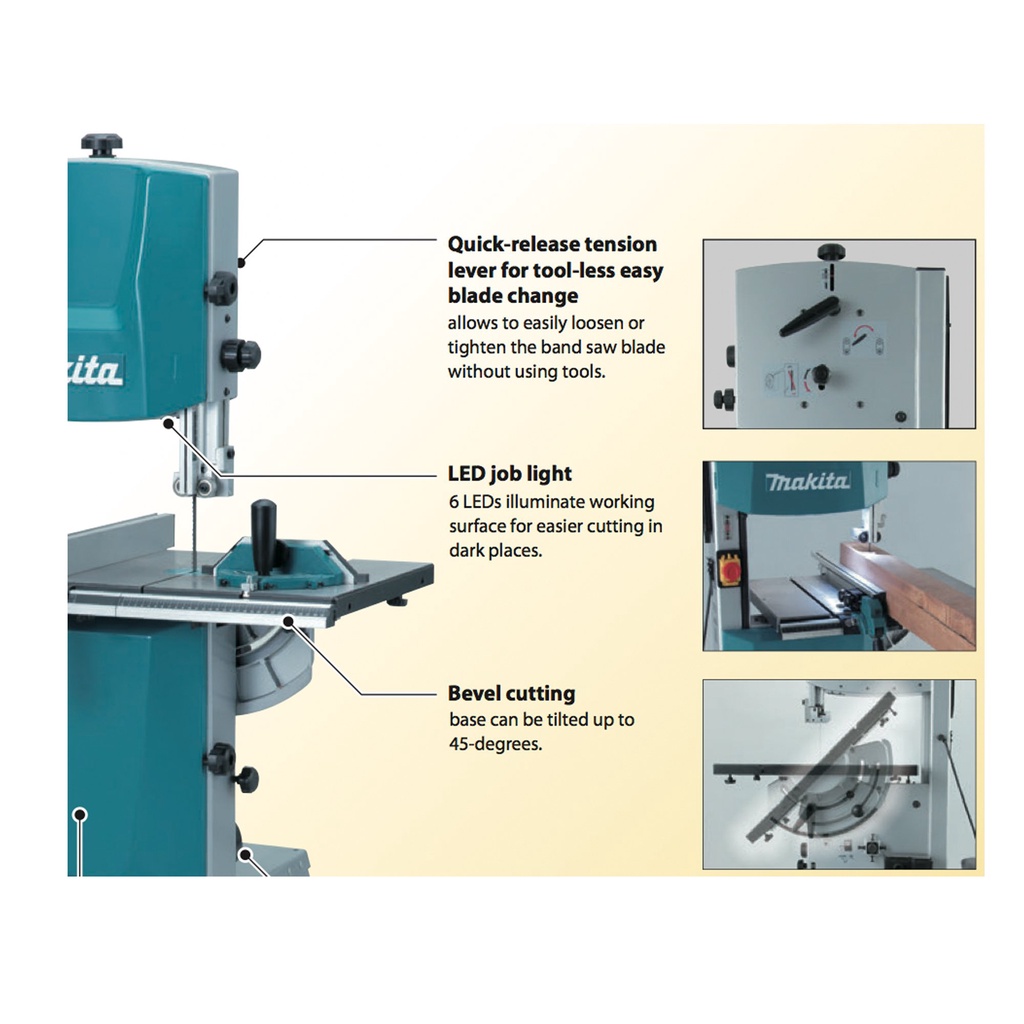

Makita LB1200F band saw installed LED job light for improved work visibility. It has 2-speed gearbox and built-in dust collection system. It is a high efficiency band saw with casters for easy mobility.

How to use Makita Band Saw LB1200F?
Having your band saw in proper adjustment is important. The blade must be tensioned properly and the guides adjusted. Follow your manufacturer’s directions for proper adjustment. The tension is loosened to install or change blades. The blade is positioned in the center of the wheels and the tension set according to the width of the blade, per instructions that came with the tool. The wider the blade, the more tension required. Blade tension keeps the blade tracking properly. If the tension is set too high, however, the blade will break. With the guard open and the machine turned off and unplugged, slowly revolve one wheel a couple of turns to determine if the blade is aligned properly. If the blade is tracking properly, close the guard and turn on the machine to make sure the blade stays tracking properly.

The next step is to make sure the blade guides are adjusted. The back of the blade should barely touch the rear guide, with the teeth running clear of the guides. Most band saws today have bearing guides. The guides should be set so the blade just touches the guides when pressure is applied with the wood. Some models have brass or metal side bearings that must be adjusted in or out and replaced or filed or turned around as they become worn.

Safety first! Makita Band Saw LB1200F

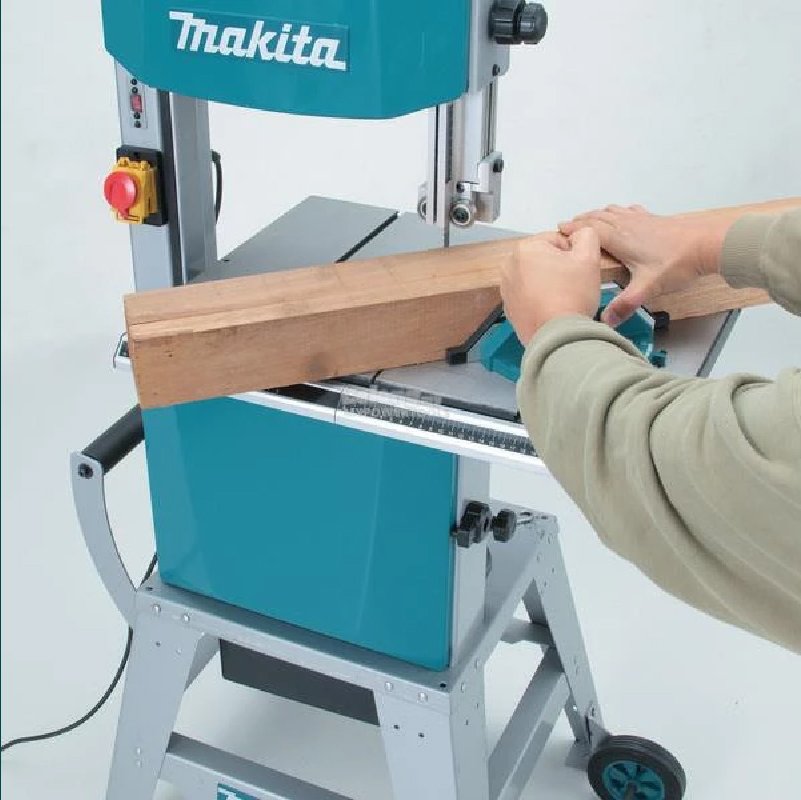

Using a band saw is fun. As with any tool, proficiency comes with practice. Follow all safety rules with your saw. Keep your hands clear of the cut line. A band saw is a relatively safe tool, but the blade is sharp and fast and can inflict serious injury in a fraction of a second. Hold your hands on both sides of the cut line and clear of the blade. If a small piece of waste is being cut off, keep both hands on the main piece. If your hands are on the small waste piece they may slip into the blade as the piece is released by the cut. Always wear safety glasses. If you haven’t used a band saw before, make practice cuts on scrap softwood stock and then try hardwood scraps.

Mark the cut line and move the stock slowly, steadily and firmly against the blade. If you push the stock out of line to one side, the blade will bend and the cut will not be vertical. Do not cut a smaller radius than the blade size can handle. The blade will bind and can jump off the wheel. Instead, cut sharp curves by making a series of relief cuts up to the cut line. Then make a series of short “whittling” cuts to remove the waste between the relief cuts. When making irregular cuts, if possible, keep the waste portion on the outside. And, make any short connecting cuts first. It is difficult to back out of a long curved cut, especially if the work piece hits the frame of the machine.
